Designed for on/off valve control applications, supporting open command, close command, open/close position feedback, remote status, and power status signals, with RS485 Modbus RTU integration into control systems.
Get a Quote
For Seamless Control and Status Feedback of On/Off Valves

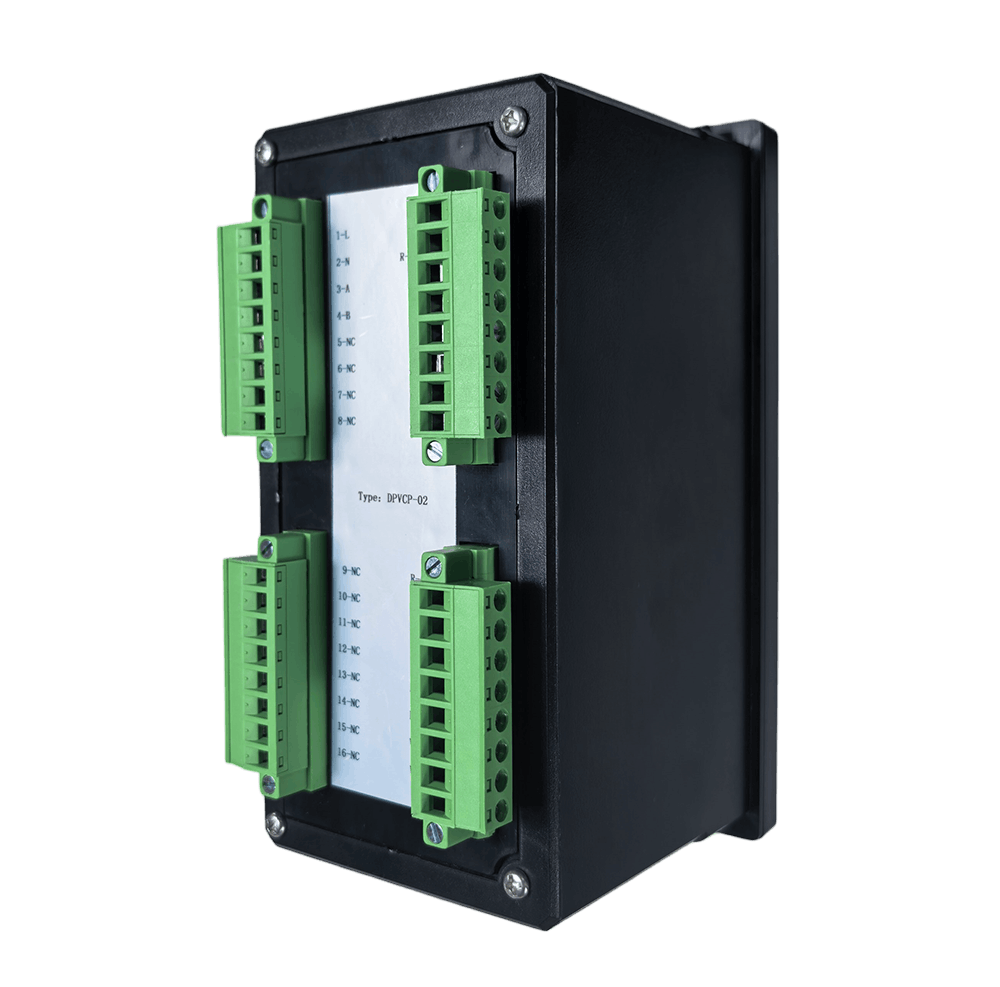

The DP motorized on/off valve controller is a seamless controller for on/off valves. Model: DP-VCP-DM.
Input signals include open command and close command (2 DO, relay signals). Output signals include open position, close position, remote status, and power status.
The product supports RS485 and MODBUS RTU communication, with a configurable communication rate of 9600 bps.
It provides on/off control, position feedback, and remote communication for on/off valves, supporting valve status monitoring and linkage by control systems.
Section Note | This page shows key parameters only. Complete Modbus addresses, wiring diagrams, and installation drawings are available in the downloadable product data. |
Parameter | Details |
Product Type | Seamless controller for on/off valves |
Model | DP-VCP-DM |
Device Power Supply | 220Vac, 50Hz, 16A |
Input Signal | Open command and close command (2 DO, relay signals) |
Output Signal | Open position (DI, dry contact), close position (DI, dry contact), remote status (DI, dry contact), power status (DI, dry contact) |
Communication Port | RS485, MODBUS RTU |
Communication Rate | 9600 bps, configurable |
Enclosure Material | ABS engineering plastic (black) |
Installation Method | Panel cut-out mounting |
Cut-Out Dimensions | 75 W × 150 H × 115 D (mm) |
Overall Dimensions | 80 W × 160 H × 120 D (mm) |
Operating Environment | -29℃ to 60℃; 10%-90% RH, non-condensing |
Fault Indication | Alarm if the motorized valve does not reach position within the set time (time configurable) |
Protection Rating | IP54, PCB: IP65 |
