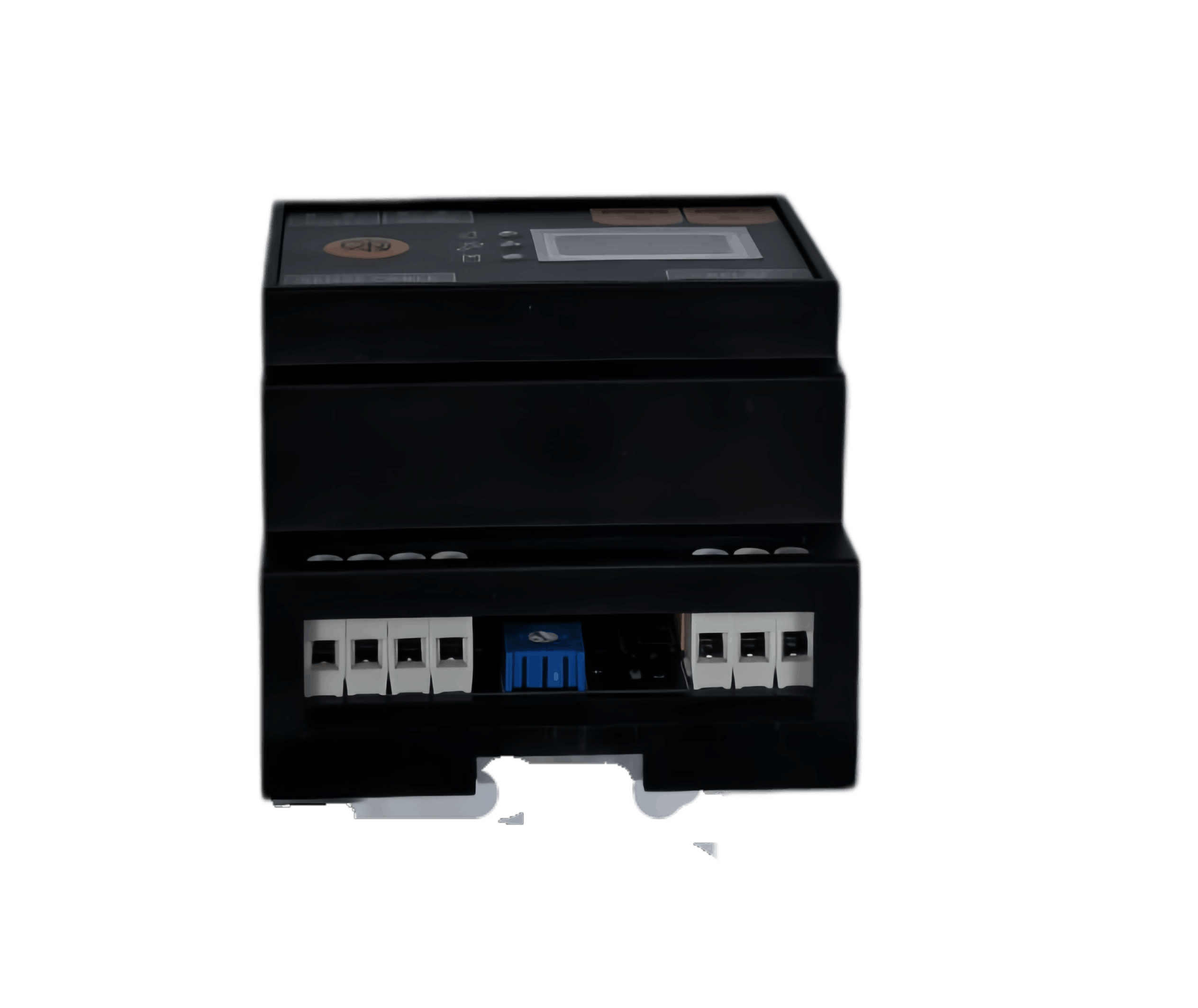

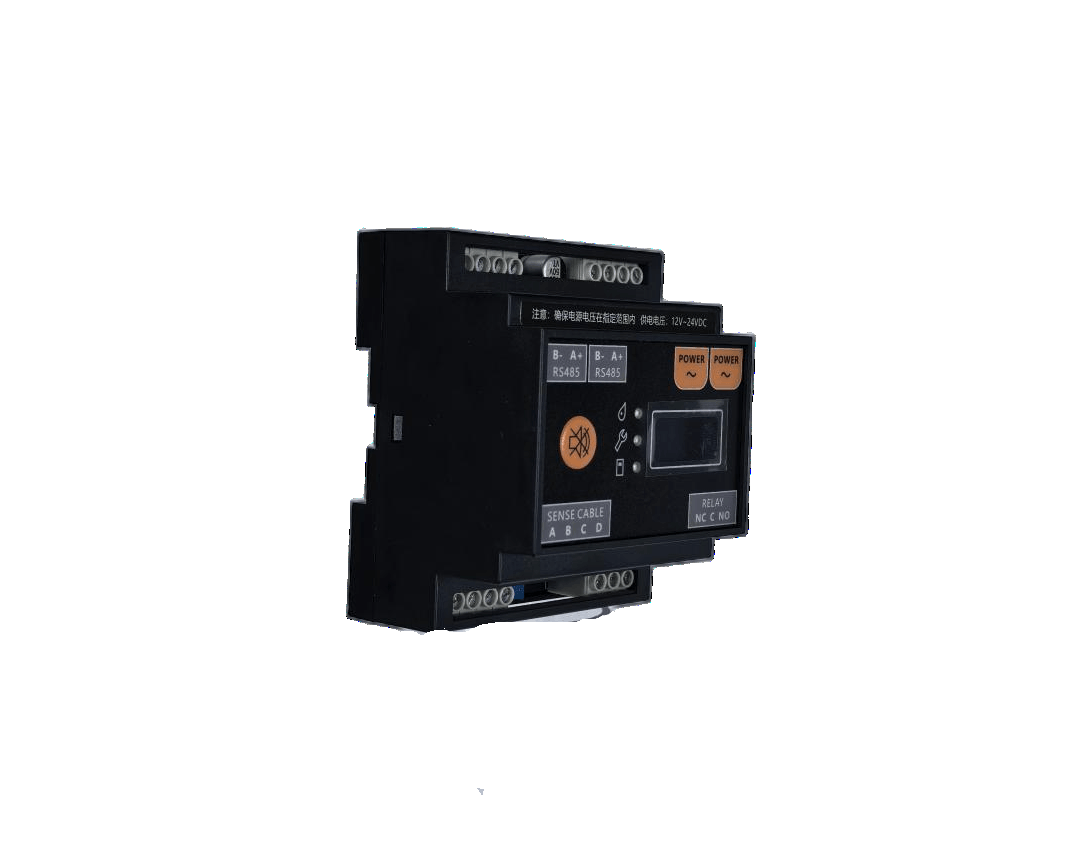

A non-locating leak detection product for leak alarm and sensing cable access. It supports up to 500 m of sensing cable, RS485 Modbus communication, and alarm relay output.
Get a Quote
For Non-Locating Leak Detection and Alarm Output
The current source material is in English. The product information is shown as DPLD100 Alarm Module (Non-locating). Chinese documentation is to be added.
The product can connect up to 500 m of sensing cable for liquid leak detection and can be integrated into monitoring systems through alarm relay output and RS485 communication.
It supports one-touch mute and automatic reset and is suitable for compact DIN-rail mounting applications.
It provides non-locating detection, alarm output, and remote communication for leak monitoring applications.
Section Note | This page shows key parameters only. Complete technical specifications, mounting dimensions, wiring instructions, and selection information are available in the downloadable product data. |
Parameter | Details |
Product Type | Non-locating leak alarm module / leak detection product (Chinese name to be added) |
Max. Sensing Cable Length | 500 m |
Alarm Method | Relay contact signal output |
Communication Method | RS485 Modbus communication |
Communication Rate | 9600 bps |
Data Transmission Format | N (parity), 8 (data bits), 1 (stop bit) |
Default Device Address | 01 |
RS485 Wiring Port | Standard two-wire asynchronous communication, RS+ and RS- |
Power Requirements | 12-24VDC/AC |
Standby Current | 70mA |
Alarm Current | 120mA |
Relay Output | 1 SPDT, NO/NC, 60VDC/2A or 220VAC/2A |
Enclosure & Installation | White flame-retardant ABS, DIN 35 mm rail mounting |
Chinese Manual | To be added |
