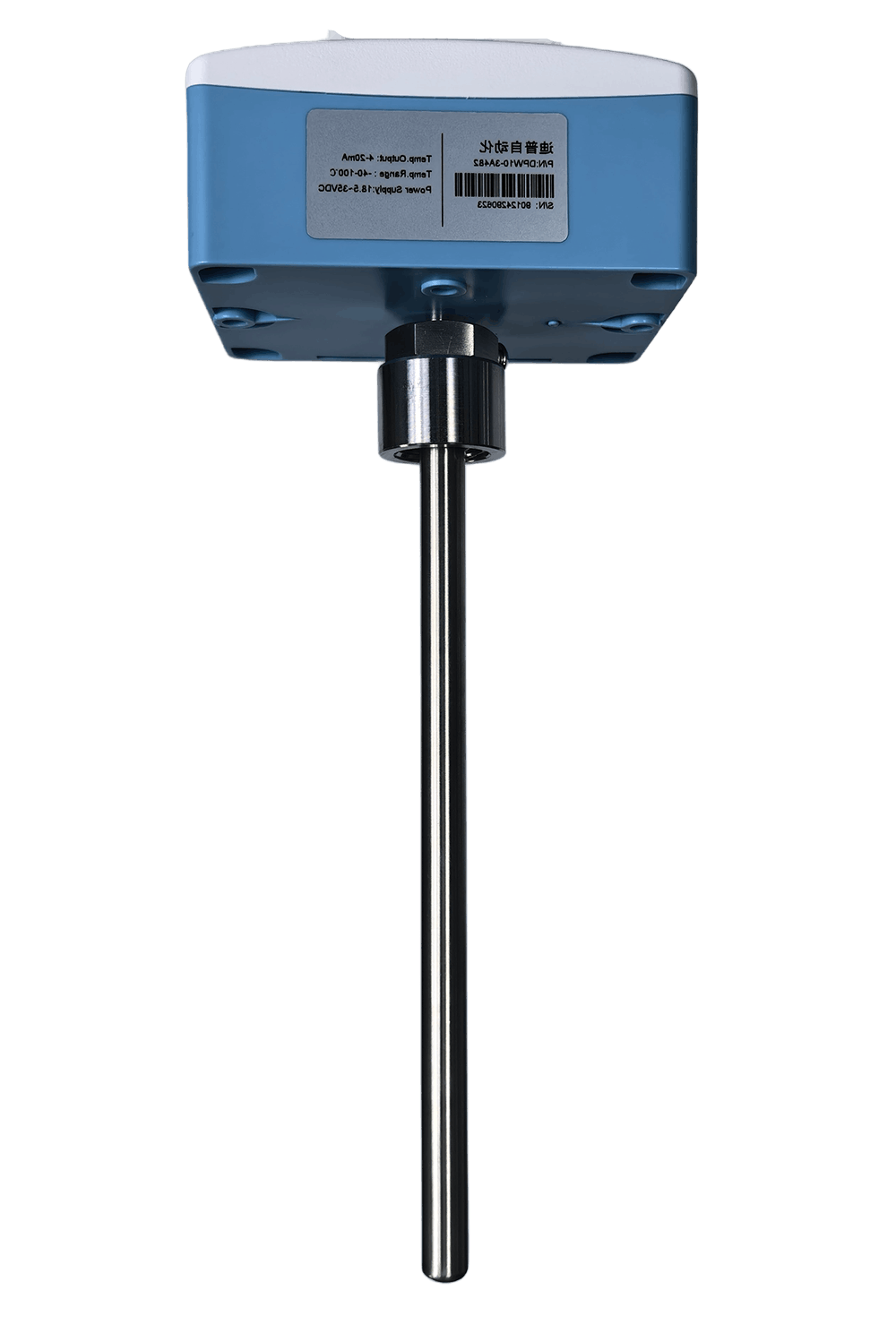

DPW10 Temperature Transmitter

Product Overview

For Temperature Detection and Standard Signal Output in Industrial Applications

The DPW10 series temperature transmitter is designed for industrial applications, with special protection against lightning surge, electrostatic discharge, and electrical fast transients, providing strong anti-interference performance.
It provides five installation methods - wall-mounted, duct-mounted, water pipe-mounted, split type, and clamp type - with optional current, voltage, and RTD output modes.
The product is suitable for fast installation and deployment in equipment room HVAC, buildings, warehouses, and other places requiring temperature detection.

It provides field temperature data for platforms and control systems, supporting environmental monitoring, equipment control, and operational analysis.

System Parameters

Section Note	This page shows key parameters only. Complete technical specifications, mounting dimensions, wiring instructions, and selection information are available in the downloadable product data.
Parameter	Details
Product Type	Temperature transmitter
Installation Method	Wall-mounted / Duct-mounted / Water pipe-mounted / Split type / Clamp type
Output Type	4-20mA / 0-10VDC / 0-5VDC / RTD
Sensor	High-precision RTD / PT1000 Class A (analog output type)
Temperature Range	0-50℃ / -20-60℃ / other customer-specified ranges
Accuracy	Typical 0.2-0.5℃ @0/25℃; analog output model ±0.2℃ @20℃
Power Supply	Voltage type: 15-35VDC / 24VAC±20%; current type: 18.5-35VDC (RL=500Ω) / 8.5-35VDC (RL=0Ω)
Output Load	≤500Ω (current type); ≥2KΩ (0-5V); ≥3KΩ (0-10V)
Enclosure Material	PC enclosure, stainless steel probe (6 mm), and sleeve
Operating Environment	-40℃ to 70℃, 0-95% RH (non-condensing)
Protection Rating	IP65
Certifications	CE / RoHS
