For Fluid Pressure Measurement in Complex Environments

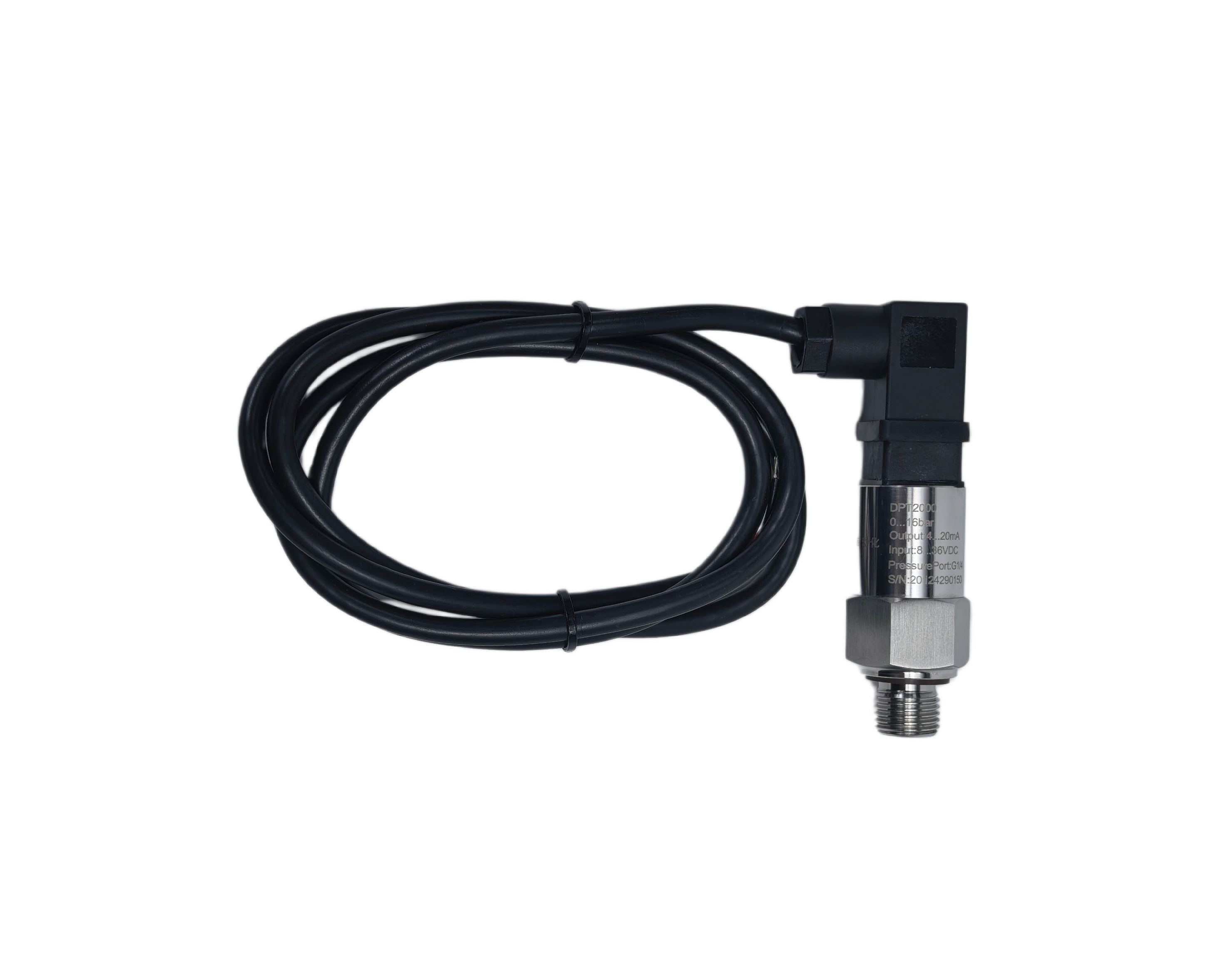

The DPT2000 pressure transmitter is used for fluid media pressure measurement and is widely applied in fire protection, water treatment, water supply systems, air compressors, pneumatic devices, factory automation, and other test systems.
It uses a ceramic sensing diaphragm with high overload capacity, corrosion resistance, and wear resistance, along with ASIC technology, MEMS technology, and digital compensation.
Its compact design supports use in complex environments and offers multiple threaded interfaces and electrical connection options.
It provides standard industrial signal output for monitoring equipment and pipeline pressure status.
Section Note | This page shows key parameters only. Complete technical specifications, mounting dimensions, wiring instructions, and selection information are available in the downloadable product data. |
Parameter | Details |
Product Type | General-purpose pressure transmitter |
Range | -100kPa to 0.3MPa...6MPa; 0 to 0.3MPa...60MPa |
Overload Pressure | 1.5 times rated pressure, up to 80MPa |
Burst Pressure | 2 times rated pressure, up to 90MPa |
Accuracy | ±0.5% F.S. / ±1.0% F.S. |
Stability | <0.5% F.S./year |
Operating Temperature | -20℃ to 85℃ |
Storage Temperature | -40℃ to 100℃ |
Measured Medium | Gases or liquids compatible with 1Cr18Ni9Ti, 304 stainless steel, fluororubber, or nitrile rubber |
Output Signal | 4-20mA / 0.5-4.5V / 0-5V / 0-10V |
Electrical Connection | Packard / DIN43650C / DIN43650A / M12 waterproof cable outlet / M12 aviation connector / GX12 aviation connector |
Enclosure Protection Rating | IP67 / IP65 / IP54 |
Pressure Type | Gauge pressure G |
Certifications | Explosion-proof type E / RoHS / CE |
