A temperature and humidity transmitter designed for industrial applications, supporting wall-mounted, duct-mounted, and split installation with optional current, voltage, and RS485 output modes.
Get a Quote
For Temperature and Humidity Measurement and Signal Output in Industrial Applications

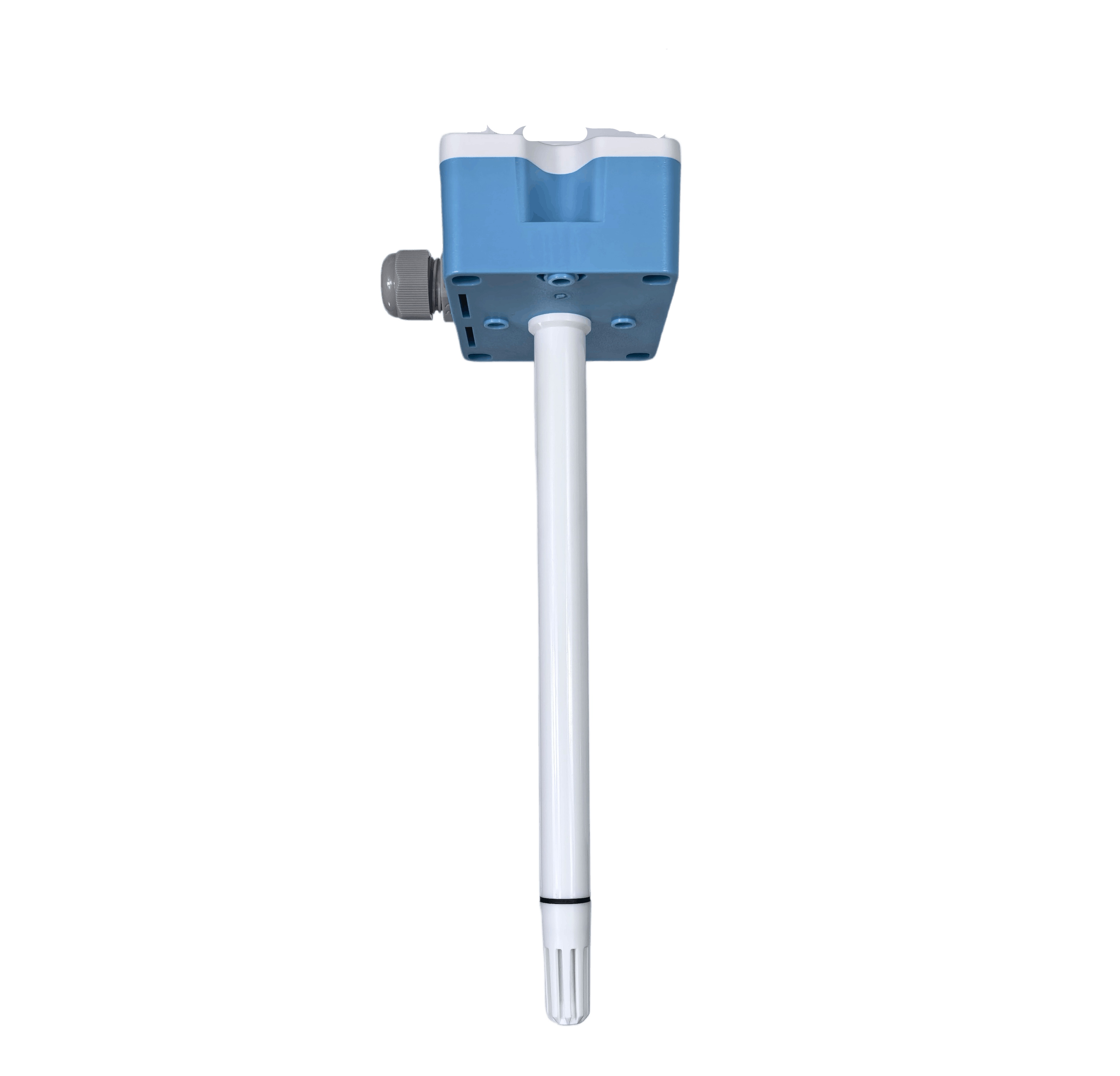

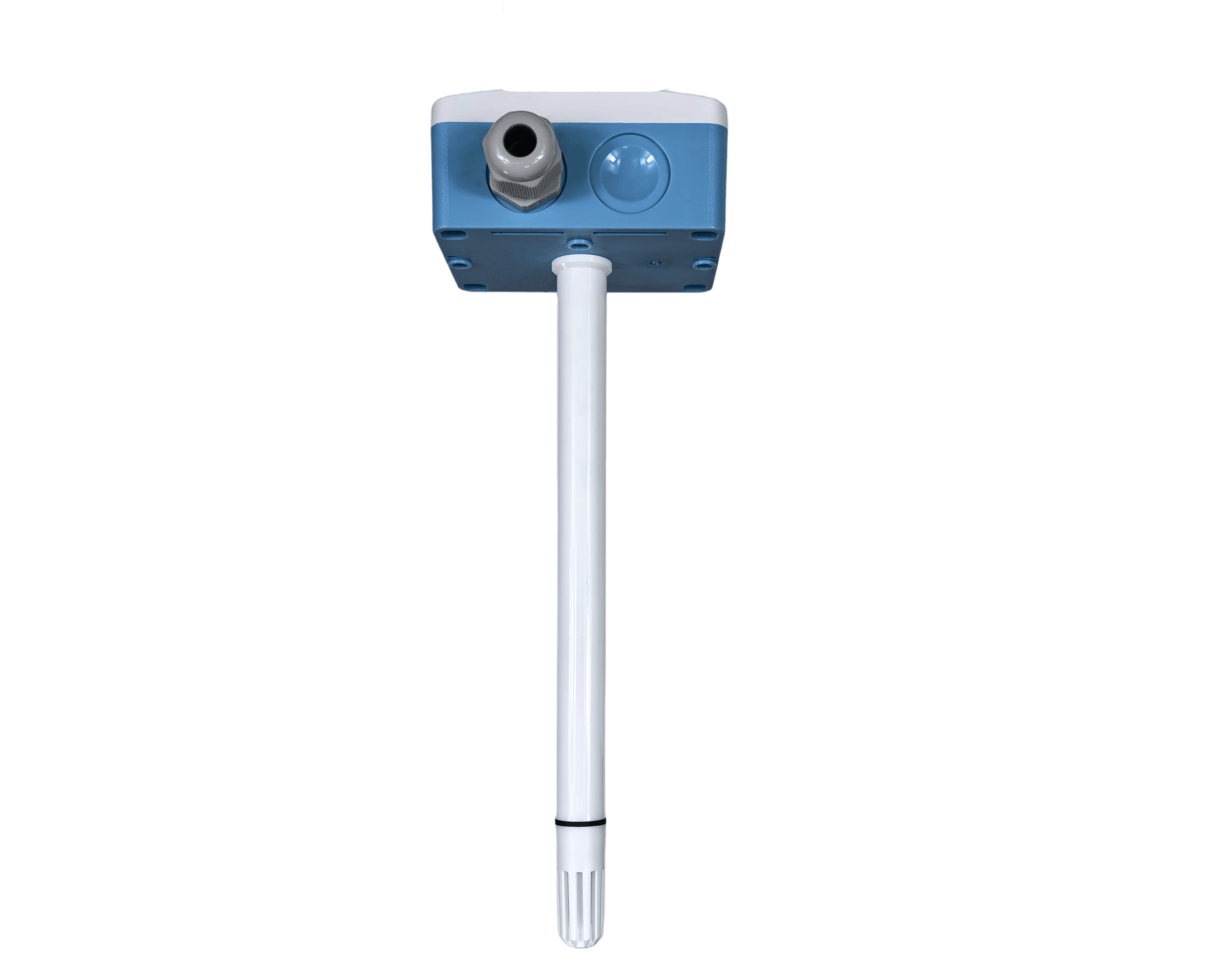

The DPH10A series temperature and humidity transmitter is designed for industrial applications and can be used in equipment room HVAC, buildings, warehouses, and other spaces requiring temperature and humidity measurement.
It uses high-precision sensors and controllers, providing long-term stability and strong anti-interference performance.
The product supports LCD backlit dual display for temperature and humidity, with optional RS485/Modbus, 0-10VDC, or 4-20mA output.
It provides field temperature and humidity data for platforms and control systems, supporting environmental monitoring, alarms, and control linkage.
Section Note | This page shows key parameters only. Complete technical specifications, mounting dimensions, wiring instructions, and selection information are available in the downloadable product data. |
Parameter | Details |
Product Type | Temperature and humidity transmitter |
Installation Method | Wall-mounted / Duct-mounted / Split type |
Relative Humidity Range | 0%-100% RH |
Humidity Output | RS485/Modbus / 0-10VDC / 4-20mA optional |
Humidity Accuracy | ±3% RH @20℃ & 20%-80% RH |
Response Time | ≤10s (20℃, slow air flow) |
Temperature Range | 0-50℃ / -20-60℃, etc. |
Temperature Output | 4-20mA / 0-10VDC / RS485/Modbus optional |
Temperature Accuracy | Digital sensor: ±0.3℃ @0-60℃; RTD typical: ±0.2-0.4℃ @25℃ |
Power Supply | Voltage/485 type: 15-35VDC; current type: 19.5-35VDC (RL=500Ω) / 9.5-35VDC (RL=0Ω) |
Operating Environment | -20℃ to 60℃, 5%-95% RH (non-condensing) |
Protection Rating | IP65 |
